Burr puzzle

This is my first attempt at making a burr puzzle.

The book that I found  Making-Wooden-Toys-and-Gifts-21-Step-by-Step-Projects-By-Popular-Woodworking uses a table saw and dado blade to cut out the notches.

making wooden toys

The instructions show how to make them using a table saw. I don't have one, so I made this one using a tenon saw and a miter box.

To be effective, the interlocking puzzle pieces should slide easily, but a fit that is too loose.

Materials

To make this puzzle, I used 19mm square dark maple. If you have a hard wood with a distinctive grain, that would give this burr puzzle a more interesting appearance.

Tools

This is a list of tools that I used:

  • Tenon saw
  • Marking guage
  • Try square
  • 16mm chisel
  • 6mm chisel
  • Square and flat files
  • Miter box (home made)
  • Clamp
  • Vernier calipers

Vernier calipers are normally used in metalwork, it helped me with making accurate cuts and getting the right fit. Perhaps we can call it the Goldilocks fit, not too tight, not too loose, just right.

Once you have made one of these burr puzzles, you will know what I mean.

Download Burr Puzzle plans

You can save the image to your device or download a PDF copy of the 3 piece burr puzzle.

Instructions

This is how I made the 3 piece burr puzzle. You may like to follow these instructions or make it a slightly different way.

There are always certain challenges with any project, and it is always good to see how someone else has met these challenges.

For example, I am using 19mm square project timber from my local hardware supplier.

Turns out that the timber is slightly thicker in one dimension, so I had to make slight adjustments.

I find it easier to make incremental adjustments using a rough file or sandpaper.

Laying it flat on the workbench, and rubbing the work-piece back and forward, checking the fit with the calipers.

Miter box setup

This is my set-up with the miter box.

Taking advantage of the fact that there is two sides, I have clamped a stop at 2 unit lengths on one side, and 3 unit lengths on the other side.

Also have an extra piece half of a unit length to cut the grooves that are half the width.

To test the setup, I cut a test piece. The length of the test piece will determine the fit of the groove.

So, I cut the length on the side that is 3 units long.

The idea is to cut a groove and test the fit. It should be able to slide easily without being too loose or too tight.

Going over to the other side, where the set-up is 2 unit lengths, cut a slot about 1/3 deep on each end, remove the waste with a 16mm chisel, and test the fit.

In this instance, it was a bit too loose, so I made an adjustment to the stop.

Rather than waste this test piece, I cut another groove on the adjacent face, until I was happy with the fit.

A masterpiece

In the photo, I have marked the side that fits best. Now I have a what could be called a master piece, which is what I will use to match the rest of the pieces.

One more piece is important in this project, a piece that is half the thickness of the material, used in cutting the slots in the piece marked "A."

I use this piece in the miter box set-up to cut the dadoes to half the width.

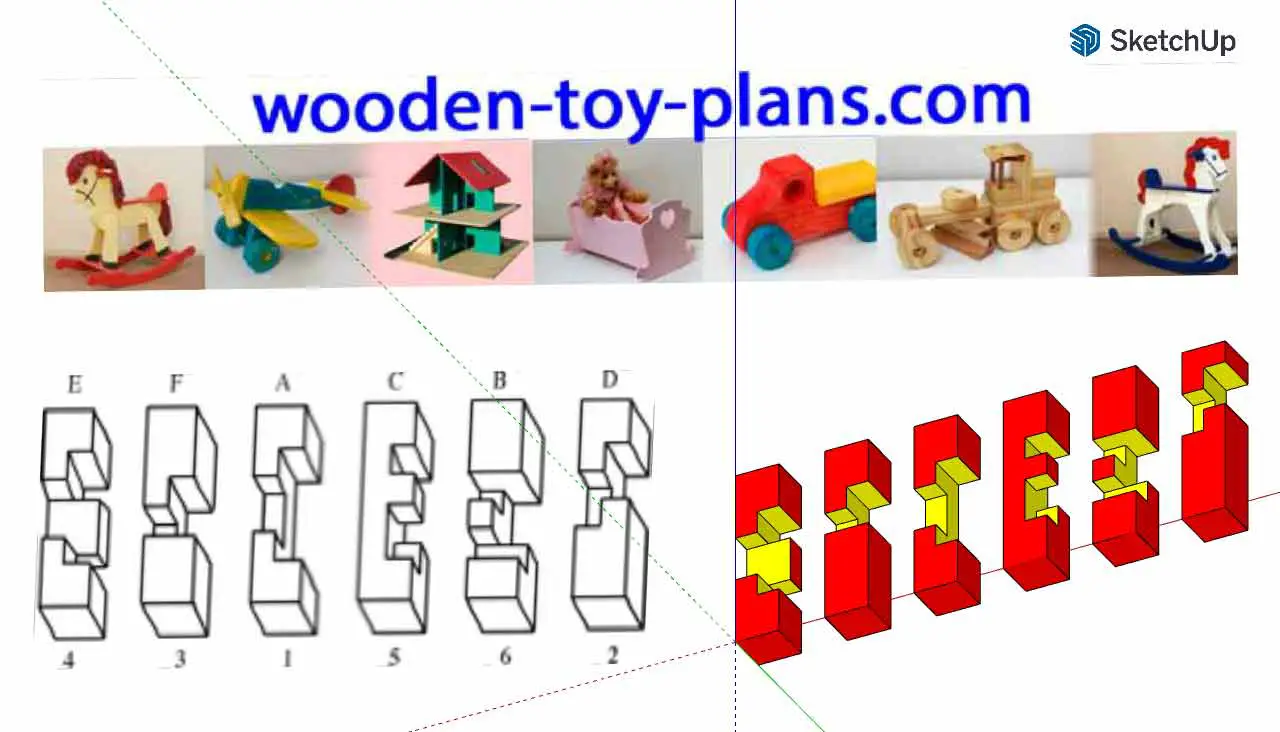

Six Piece Burr Puzzle

How to make a 6 piece burr puzzle.

Watch the video on YouTube.

The dimensions I have shown here are for reference. When I get the time to make one, I shall in all likelihood make it 3 times larger.

For example, consider the dimensions as units rather than millimeters. The puzzle is based on a cube 10 x 10 x 10 units.

Thus the notches are formed as multiples of 5 units. The overall length of all the parts is 4 units of 10mm.

Lets say I think that I would make the puzzle 3 times larger.

I  would cut 6 pieces 30mm square by 120mm long, and cut the notches accordingly.

6-piece-burr-puzzle01Part A
6-piece-burr-puzzle02Part B
6-piece-burr-puzzle03Part C
6-piece-burr-puzzle04Part D
6-piece-burr-puzzle05EPart E
6-piece-burr-puzzle06FPart F

Another 6 Piece Burr Puzzle

6 piece burr puzzle Mk2 Hero

I am not an authority on puzzle, this is what I have discovered:

This 6 piece burr puzzle is named 305 after its location in Cutler's analysis tables.

Apparently there are 314 burr puzzles. This one is regarded as the most interesting.

It contains no duplicate pieces, and it has only one unique soution that does not require a common 2 piece key.

Geometric Form Puzzle

This wooden puzzle started as a SketchUp modelling exercise.

Then I had the bright idea of using magnets at the joints.

I hope to make one sometime soon.

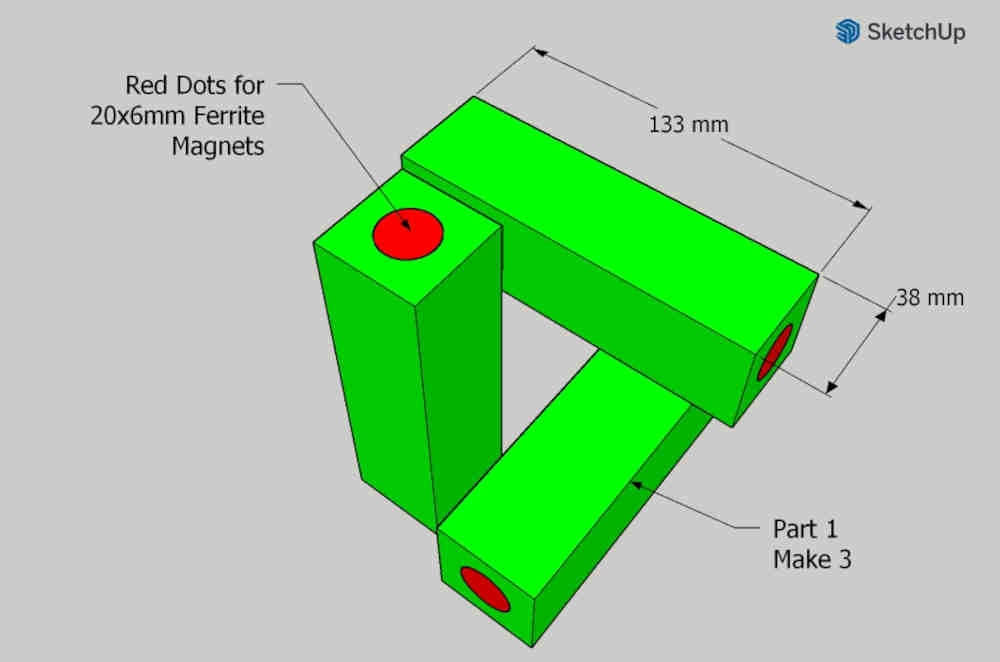

woode-puzzle01-part1Wooden Puzzle Part 1

Part 1 make 3.

The parts are shown in their relative position.

wooden puzzle 01 part2

Part 2 make 3.

The red dots for ferrite magnet discs glued into a recess with epoxy glue.

I am given to understand that ferrite magnets are not as strong as rare earth magnets.

wooden puzzle01 part3

Part 3 make 5.

Maybe making a matched pair of magnets would not be such a good idea. I'm not sure about the polarity of a disc magnet, so I would pair the magnet with a bright steel washer.
