Version 1 of the free doll cradle plans is about 330mm (13 in) long, 260mm (10.25 in) wide and 235mm (9.25 in) high.
This version is a PDF (Portable Document File) including the instructions with photographs and full size templates.
Download version 2 (700KB) of the plan is almost twice the size, at 600mm (23.6 in) long, 470mm (18.5 in) wide and 430mm (16.9 in) high.
Print the plans on your home printer and use the full size templates to cut out the shapes.
For this project you can use MDF or plywood ¼ inch (6mm) or 3/8 inch (9.5mm) thick.
You will also need the following consumable items:
This is a list of the basic tools that I used to complete this project. The links will take you to eBay where you can see what is available in that range and compare prices.
When I am starting a new project, I find it helpful to read through the instructions first.
This is a copy of the instructions contained in the e-books for Version 1 and Version 2.
1. Make a template by pasting the profile onto a piece of thin card and cut out the shape.
2. Trace the parts onto the wood and cut out the shapes with a jigsaw and clean up the edges with the smoothing plane and wood file.
3. To cut out the heart shape, first drill a hole to fit the size of your jigsaw blade.
4. Measure the angle with the sliding bevel and plane the bottom of the two sides to this angle.
5. Using bits of leftover timber to make two right angle jigs similar to the one in the photo above.
6. Line up one end to one side and apply the duct tape. In effect, this forms a hinge. Lay the end flat and apply a thin bead of glue as shown in the photo. Be sure that the bevel is facing the right way.

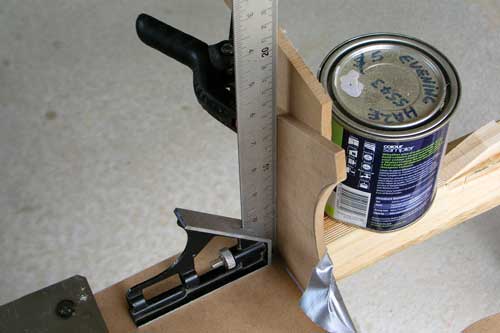

7. Fold up the end making sure the corner remains flush. Clamp the right angle jig in place and check for squareness. The photo shows the parts held in place with weights (in this case, the paint tin).
8. Do the same for the other half, making sure you have a handed pair.
9. Once the glue has set, tape and glue the two halves together. Note how a piece of timber is wedged under so that the top is about level.
10. Once the glue has set, it may be necessary to trim the edges with the smoothing plane as shown in the photo.
11. Cut the floor slightly oversize and glue it in place as shown in the photo.
12. The workpiece is clamped securely to the bench and the floor trimmed flush. This will put the joints under stress, so it may be a good idea to leave the glue to set overnight.
13. All that remains is to glue the rocker ends and the project is complete.
Paint or finish the project in colours of your choice.
I hope you will enjoy making this project from these free doll cradle plans.
Why not take a few photo and send them to me, and I will gladly include them in the woodworking projects gallery page.
A fine example of a doll cradle made by Des Legget. Visit the Photo Gallery to see more woodworking projects.
