Free wooden airplane plans you can download. How to make a wooden toy airplane with just a few woodworking hand tools and scraps of wood. The fuselage, propeller, undercarriage and wheels are made from 19mm (3/4") pine. The wings, rudder and tailplane is made from 12mm (1/2") thick maple or pine.
This wooden toy airplane can easily be made with the kind of tools the average home handyman already has:
Cordless power drill is useful as a screwdriver as well as drilling holes.
A band saw or a scroll saw for cutting curves.
A tenon saw.
A combination square.
A few woodworking clamps.
Hacksaw to cut the dowel axles to length.
Wood file to round over all the edges.
Sanding block and 120 and 80 grit sandpaper.
A selection of drill bits.
This is a list of tools that may be considered to be optional. They are not essential for completing the project, but they do make certain tasks much easier which adds to the enjoyment of woodworking.
If you have access to a wood turning lathe, you could make the fuselage in the round, so to speak, instead of the profile cut-out as shown.
You can make your own wooden wheels or buy them ready made.
There is not a lot of wood in this wooden toy airplane, and you probably have a few pieces left over from another project. This is what you will need:
You may want to make more than one wooden toy airplane, so it would be a good idea to make templates of the fuselage, tailplane and rudder.

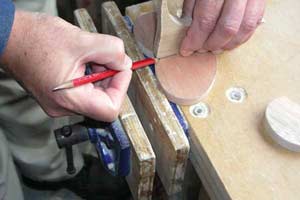

5. Using a scrap piece the same thickness as the rudder, mark out a notch on the tailplane.
6. Use the fuselage to measure the depth of the notch for the rudder. Cut out the notch carefully for a snug fit.
7. Mark out the wings to the dimensions shown on the wooden toy airplane plan. Using the combination square, mark out the position of the struts on the top wing only.
Using a pair of compasses I made my wingtips round, but you can make them any shape you want to. I used a 12" disc sander to clean up the edges, but it can be done with a wood file instead.

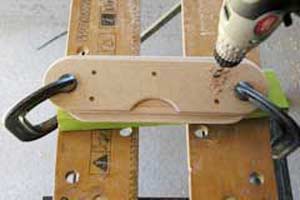

9. There is a trick to drilling the holes for the wing struts for this wooden toy airplane. On a real biplane, the top wing sits slightly forward relative to the bottom wing. It is important that the wing struts line up, so be sure to clamp the two wings together and drill the holes for the 8mm dowels accurately with a drill press. Mark both wings "left" and "right" so that when it comes to final assembly everything lines up the way it should. Do not drill the hole in the centre of the top wing yet, leave this until step 16
Make a pair of landing gear struts. Clamp them together and drill a hole for the axle with the 8.5mm drill bit. This is where the drill press is useful.
Round off the edges of the wings and the tailplane parts, and the landing gear struts except the area where they are glued to the wings. Again, a router is useful for this step, but you may not be comfortable with such small pieces. Use a wood file and sandpaper instead. Note that if you are going to be using a router, I found the 6mm roundover bit removed too much material, so I used a 4mm roundover bit instead.
Glue the rudder to the tailplane, making sure that everything is perpendicular.
Mark out the position of the landing gear struts and attach them to the wings using the 8x30 woodscrews. Note how the axle keeps the struts aligned. Once the glue has set, you may want to remove the screws and plug the holes with 8mm dowel.
By now, the glue should have set on the fuselage, so remove the woodscrew and round off all the edges except for where the bottom wing and the tailplane is seated. Use a router or a wood file and 80 grit sandpaper.
Glue the bottom wing to the fuselage, making sure everything is perpendicular. Leave it to set.
Carve the propeller from a piece of 19mm pine, 100mm long by 30mm wide. It is easier to drill the 4.5mm hole for the wood screw before carving it.
Glue the tailplane assembly to the fuselage, again ensuring that everything is perpendicular. It is easier to use a woodscrew to clamp the tailplane assembly in place. Once the glue has set, the woodscrew my be replaced with a dowel to form a tailskid.
Cut 4 pieces of dowel 90mm long for the wing struts.
The time has come, (the walrus said) to drill the hole in the top wing. Using the dowel struts, line up the top wing left and right as marked earlier, and carefully drill the hole for the 8mm dowel through the top wing into the fuselage. Now the top wing may be glued in place.
All that remains is to attach the propeller and the wheels and you are ready to zoom around the room!
